Descrizione
RTB Manual click here
Discover RTRC’s AWD: The RTB

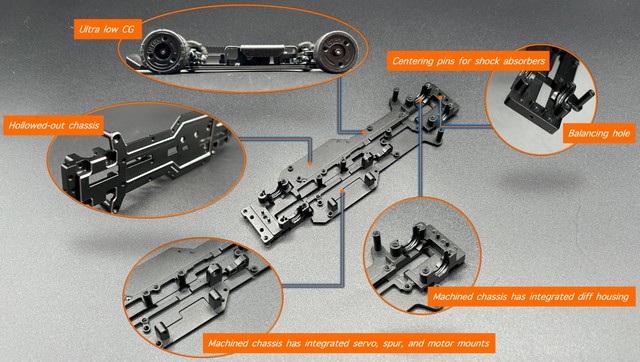

An all-machined chassis offering numerous advantages:
Extremely precise positioning of upper and lower arms.
Stable settings over time, despite assembly/disassembly.
Extremely low center of gravity.
Pre-set belt tension that remains stable over time.
Perfect belt alignment with diffs and pulleys.
Outstanding rigidity for improved running performance.
Fewer screws mean more space for positioning the various components on the chassis.
Extremely simplified chassis maintenance.
Chassis weight can be changed in seconds.

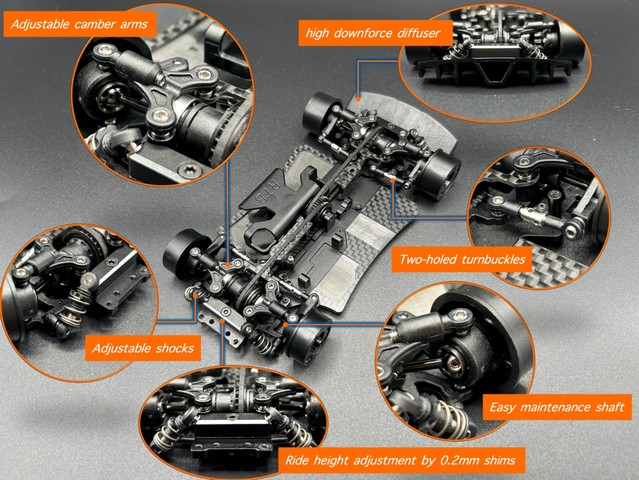

We’ve also added several features for easy RTB adjustment:
Front and rear left/right balance holes.
Ultra-simple camber adjustment thanks to a left-hand thread screw system.
The possibility of using a diffuser to adjust the rear traction of the chassis.
Front and rear turnbuckles have 2 holes for easy adjustment.
Shafts that can be easily dismantled with a screw for easy maintenance.
Possibility of using 0.2mm shims to adjust ride height without modify the cross-weight of the car.
Recommended servo : A11CLS V3
Recommended servo horn : HPS07
