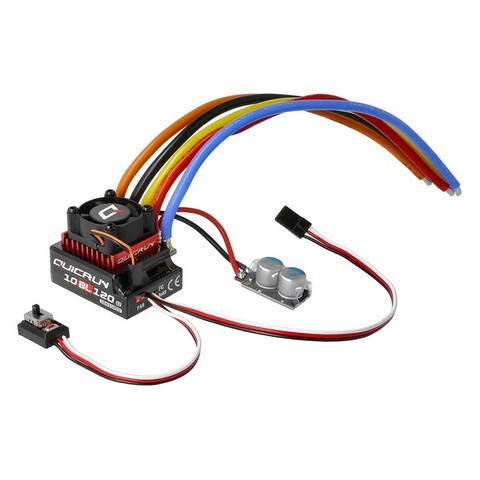

Hobbywing 30125002 - QuicRun 10BL120G2 120A Sensored ESC 2-3s

Model: HW-30125002
Manufactured by: Hobbywing

57.13EUR

Add to Cart:



Description

The second generation of the Quicrun 10BL120 ESC is a classic brushless solution for 1/10 cars such as touring cars, buggies and drifters.
With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor.
Hobbywing's QuicRun series offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - whether with brushless motors or not.
It is aimed primarily at beginners and advanced pilots and impresses with the outstanding, well-known quality of Hobbywing products as well as the uncomplicated commissioning.

Features:
- More setting options than its predecessor (including turbo delay, turbo timing and boost timing)
- Improved BEC output with switch instead of linear mode
- Motor rotation direction freely selectable (CW or CCW)
- Top performance at a low price
- Compact design, suitable for a variety of chassis
- Ideal for many areas of application and competitions
- Various protective functions:
- Overheating protection
- Cutoff voltage

Technical Specifications:
- Type: Brushless, Sensored
- Current (cont./peak): 120A / 760A
- Input Voltage: 2-3S Lipo
- BEC: 6V / 7.4V @ 4A (Switch Mode)
- Motor Types: Brushless Motors (with/without sensor)
- Motor Limit: 2S: >=4.5T, 3650 Motor 3S: >=10.5T,3650 Motor
- Fan: Yes, powered by the BEC
- Programming: LCD Program Box G2, LED Program Box
- Dimensions: 44x36.8x32.3mm
- Weight: 101.5g
- Application: 1/10 Touring, Buggy, Drift

Optional:
- HW-30502001 LCD Program Box G2
- HW-30501003 LED Program Box

Include:
- Quicrun 10BL120 G2 ESC
- Manual (English)
- Sticker & Mounting accessories
- Programming table as a sticker for the LED programming box
